Description

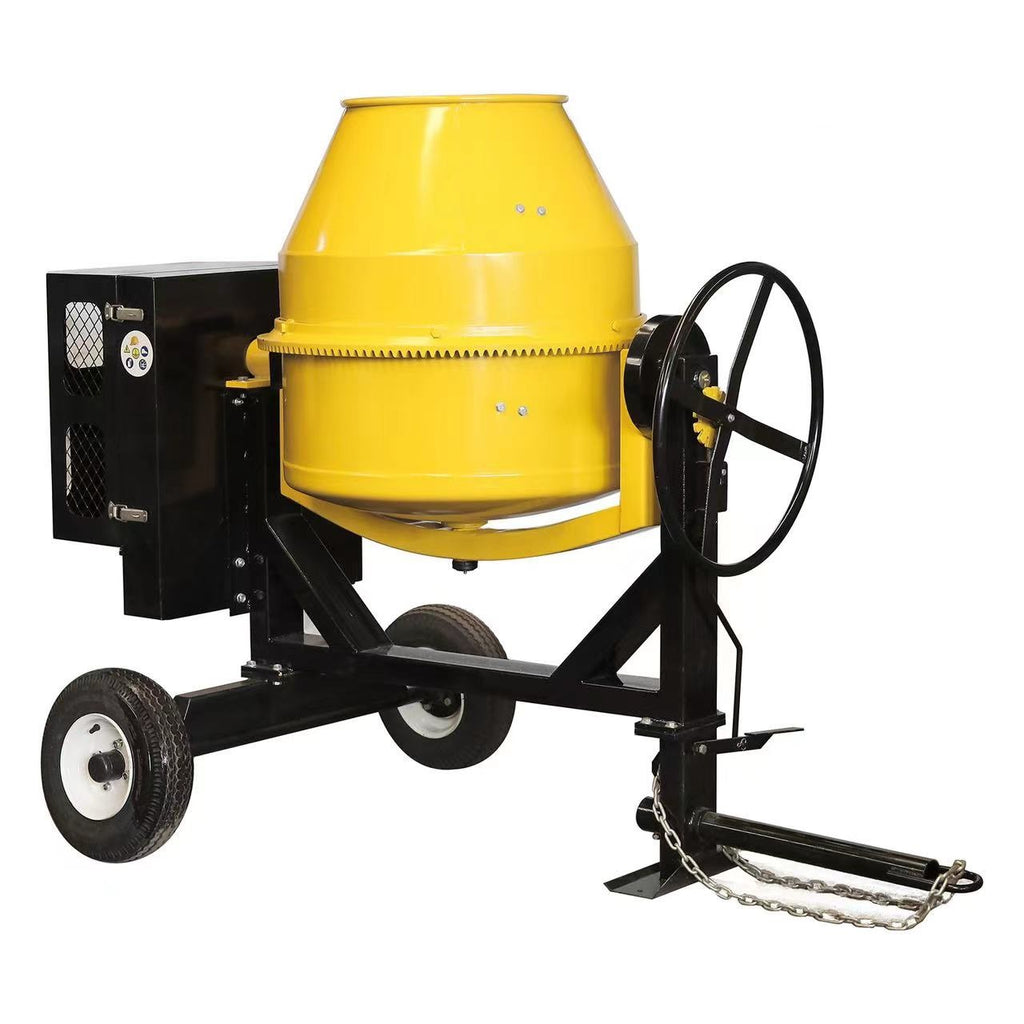

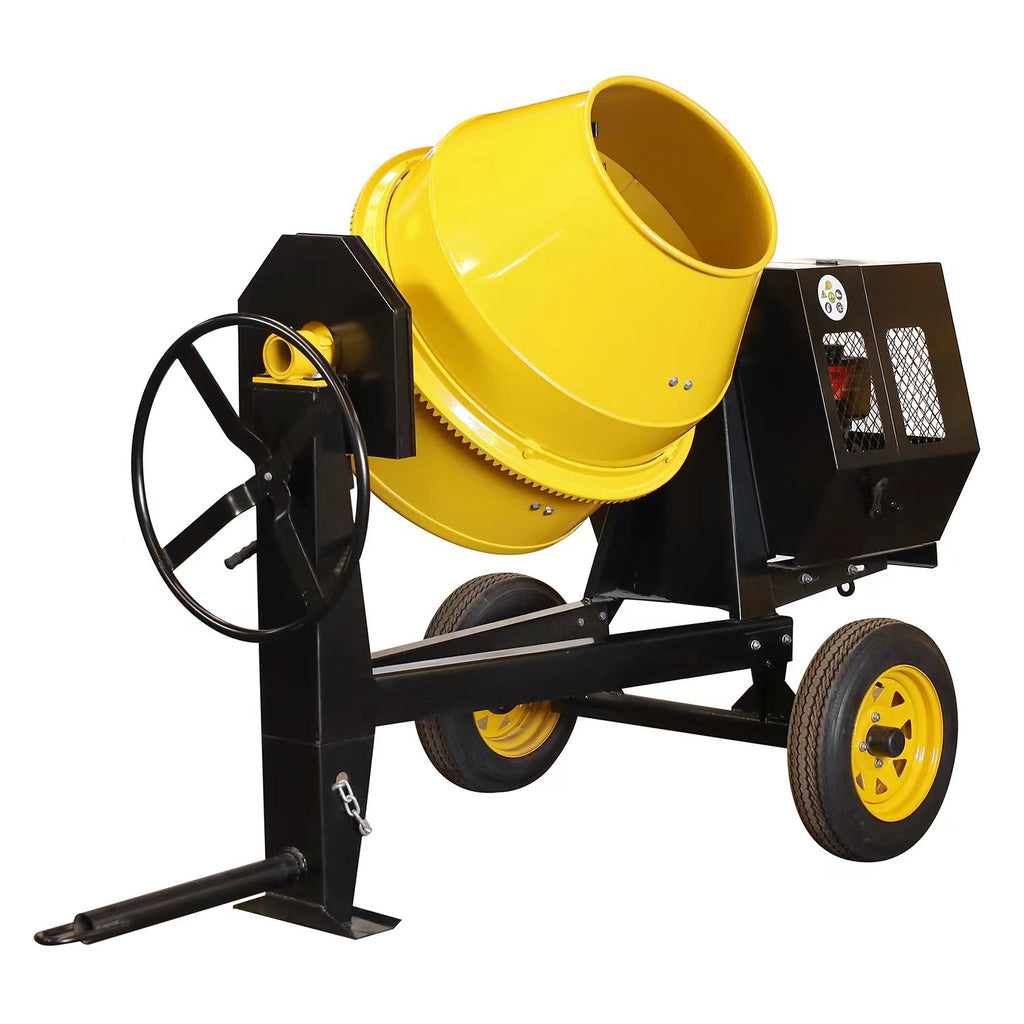

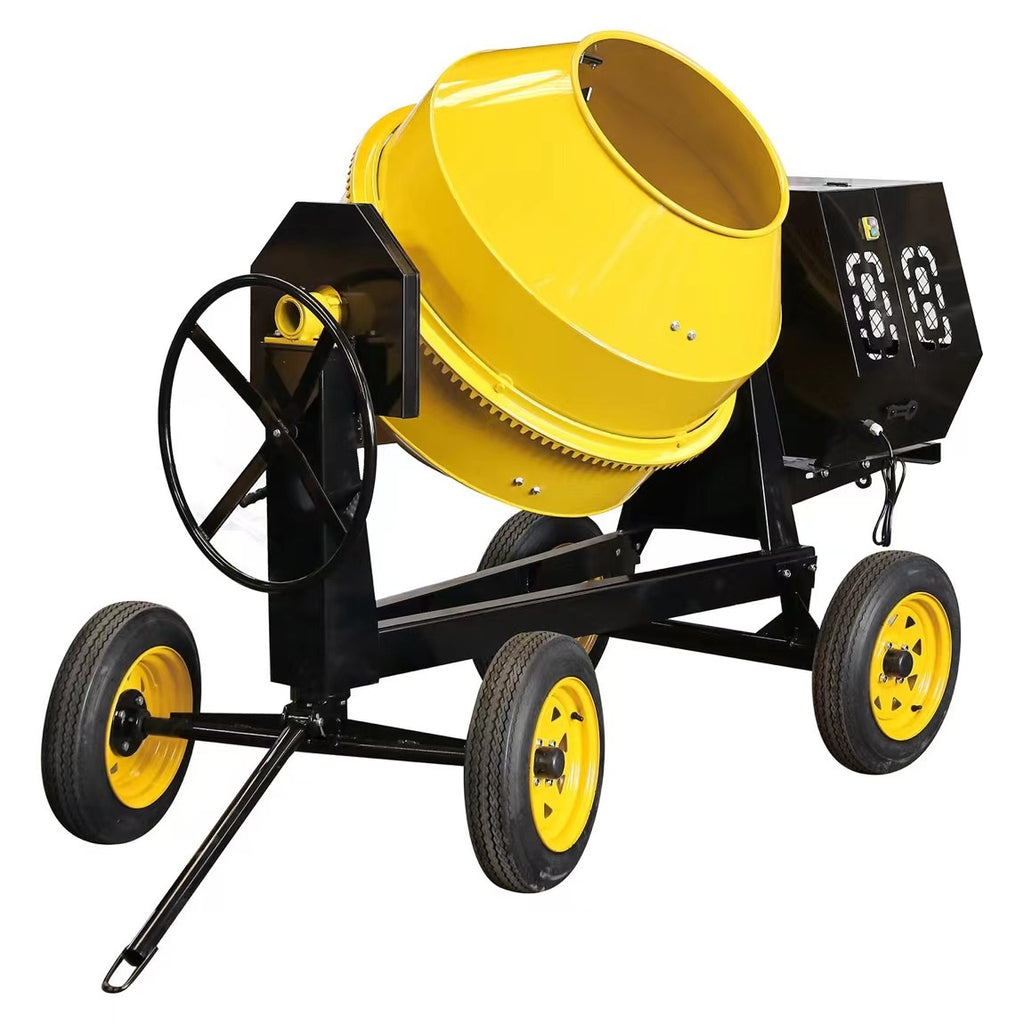

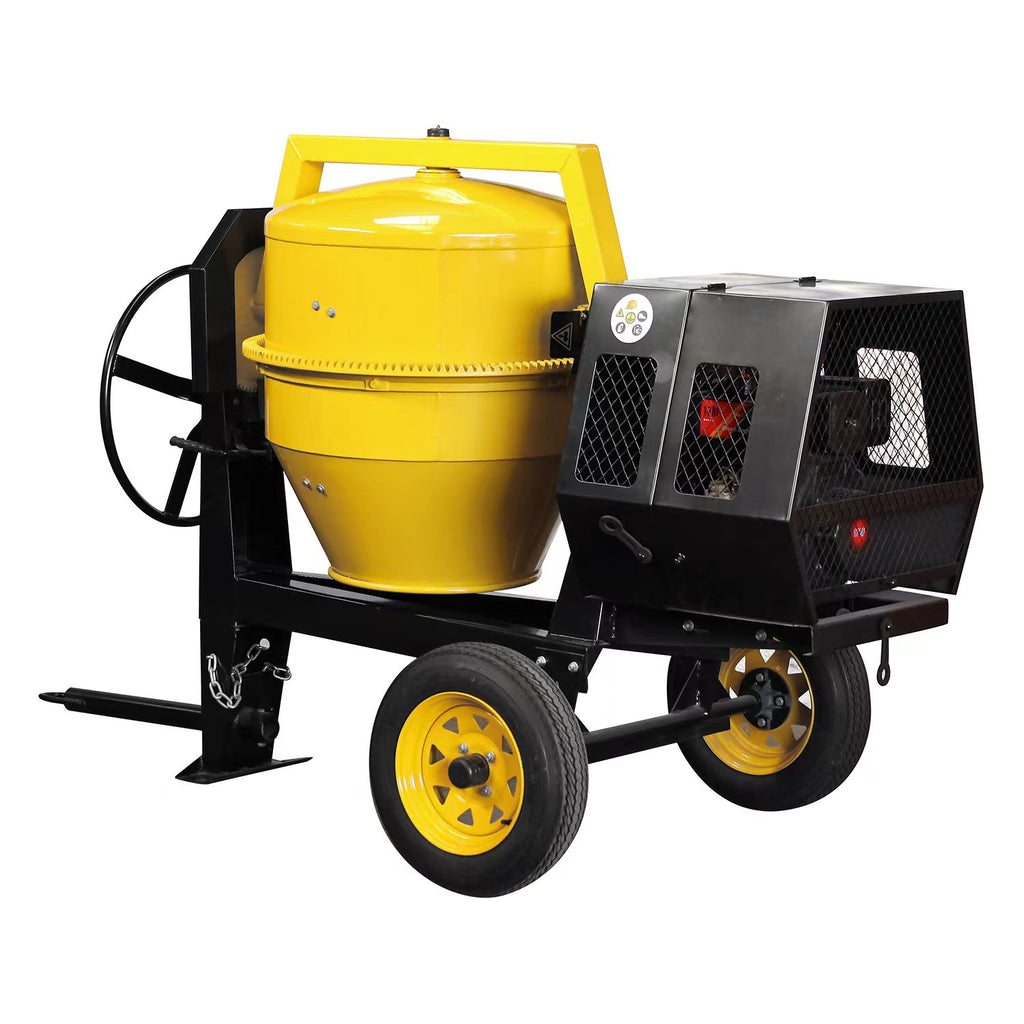

400-700L Large Portable Cement Mixer Concrete Mixer
Electric/Petrol/Diesel power available. Drum capacity 400L, 500L, 600L,700L
Perfect for concrete, mortar, or render. It is equipped with dual mixing blade for consistent and efficient mix. The drum can be tilted at vast positions controlled by high grade tipper grade.
Features:
-
Quick and efficient large cement mixer, petrol/diesel/electric motor
-
Tilting drum will provide consistent and speedy mix every load;
-
Gear box provide extra protection for the petrol motor;
-
High manoeuvrability, equipped with big tyres and tow bar
-
Reliable heavy duty frame;
-
Constructed from solid and sturdy steel, perfect for construction and farm application.
-
Can be customised with certain MOQ. EPA certified.
-
Goods Examination /Inspection video & photo approved.
Specifications:
Model |
TCM400 |
TCM500 |
TCM600 |
TCM700 |
---|---|---|---|---|
Power(Elec/Gas/Die) | 3kw/6.5HP/5.5HP | 3kw/8HP/8HP | 4kw/8HP/8HP | 4kw/8HP/8HP |
Max Drum Capacity | 400L | 500L | 600L | 700L |
Drum Diameter | 910mm | 910mm | 950mm | 1000mm |
Cogwheel Type | cast iron | cast iron | cast iron | cast iron |
Overall Size | 2750*1180*1620mm | 2780*1180*1650mm | 2800*1200*1650mm | 2800*1220*1670mm |
N.W./G.W. | 318/338kg | 328/350kg | 350/380kg | 378/408kg |
Loading Qty 20/40/40hq | 12/24/24pcs | -/-/24pcs | -/-/22pcs | -/-/20pcs |
