Description

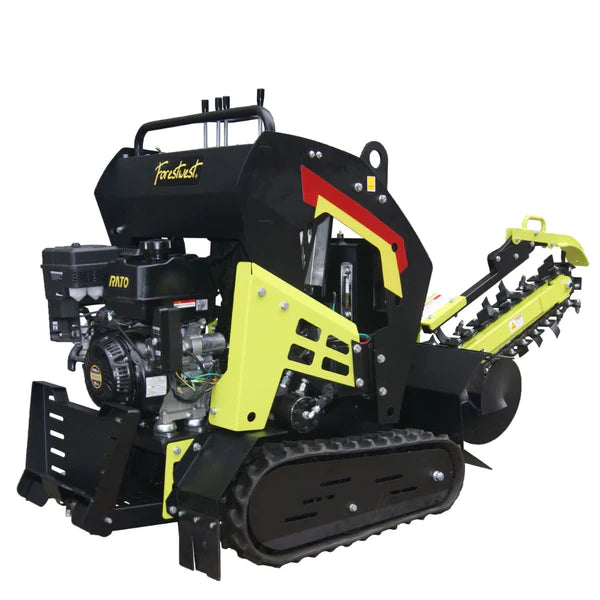

This Mini Trencher is equipped with the RATO 20hp electric start petrol engine which provide everything you need for a trencher to get the job done right.
The trencher is easy to control and operate whilst being extremely capable of difficult jobs.
Centrifugal clutch with recoil starts to ensure smooth and easy start this trencher, with Throttle cable, stop, emergency stop button and handle wheel lock all located at your fingertips on the handlebars.

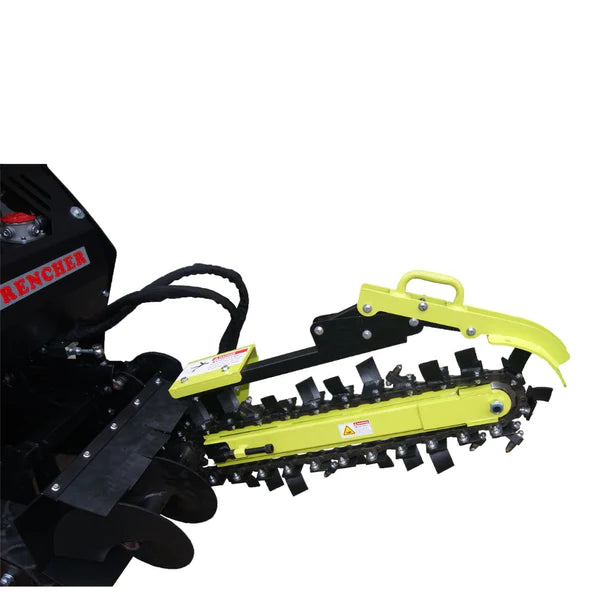

This trencher is equipped with 27 replaceable mining grade alloy blades and capable of up to 600mm adjustable depth and 100mm width, significantly reduced the time compare to manually dig the same size.
Being portable means you can get it where you can not get other machine and for a fraction of the price. With height adjustable handlebar it is absolutely a space saver, maximum wide 70cm allow access through gates and trenching close to walls.

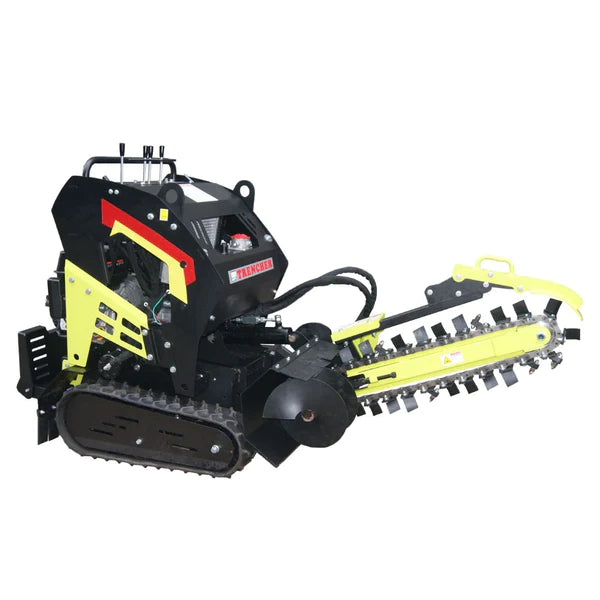

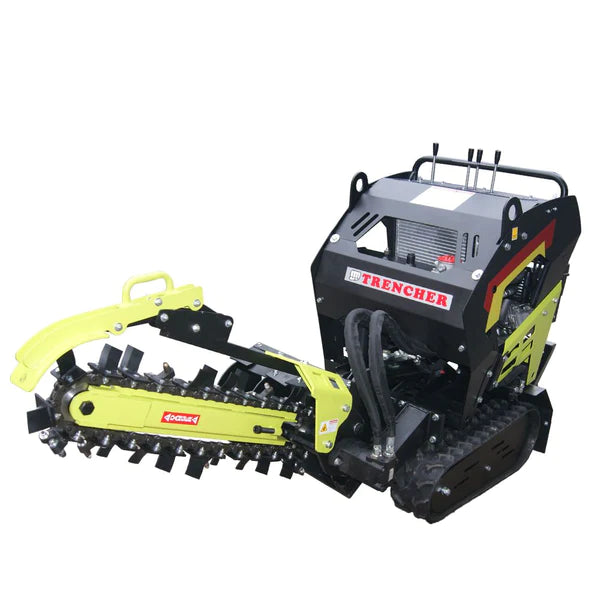

20hp 600mm Petrol Chain Mini Trencher
-
ULTRA RELIABLE RATO 20HP POWERFUL 4-STROKE PETROL ENGINE;
-
EASY TO CONTROL AND OPERATE WITH ALL CONTROL BUTTON WITHIN FINGERTIPS RANGE;
-
DIGGING UP TO 600MM IN DEPTH AND 100MM IN WIDTH;
-
27 REPLACEABLE MINING GRADE CARBIDE ALLOY BLADES;
-
70CM BODY WIDE WITH HEIGHT ADJUSTMENT HANDLE FOR SPACE SAVING AND EASY ACCESS.
Specifications:
| Model |
20HP 600MM SELF-DRIVEN CHAIN MINI TRENCHER BM699 |
|---|---|
| Engine | 20HP 500CC RATO petrol engine with Electric start |
| Trench Width | 100mm |
| Trench Depth | 0-600mm adjustable |
| Trench Capacity | Up to 150 meters per hour |
| Blade Number | 27 PCs |
| Rubber Track Size | 600(L)*180(W)*280(H)mm |
| Chain Length | 2000mm |
| Chain Speed | 550m/min |
| Overall Size | 2348(L)*790(W)*1285(H)mm |
| Weight |
430/480 kg |
|
Packing Size |
1880(L)*825(W)*1320(H)mm |
