Description

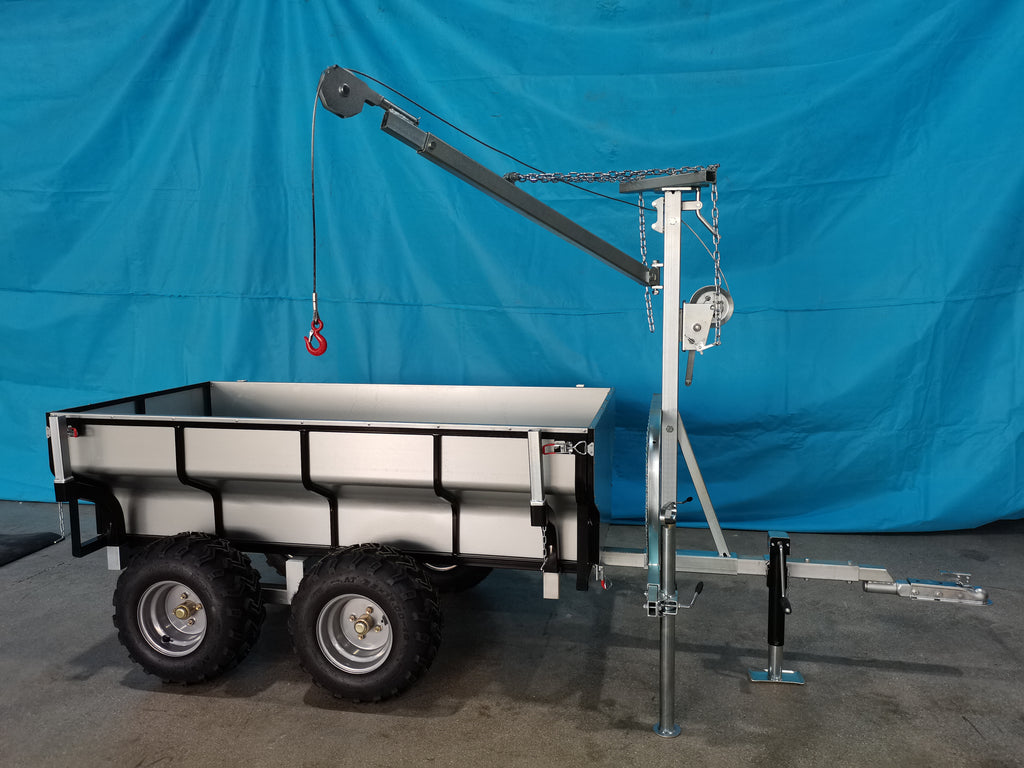

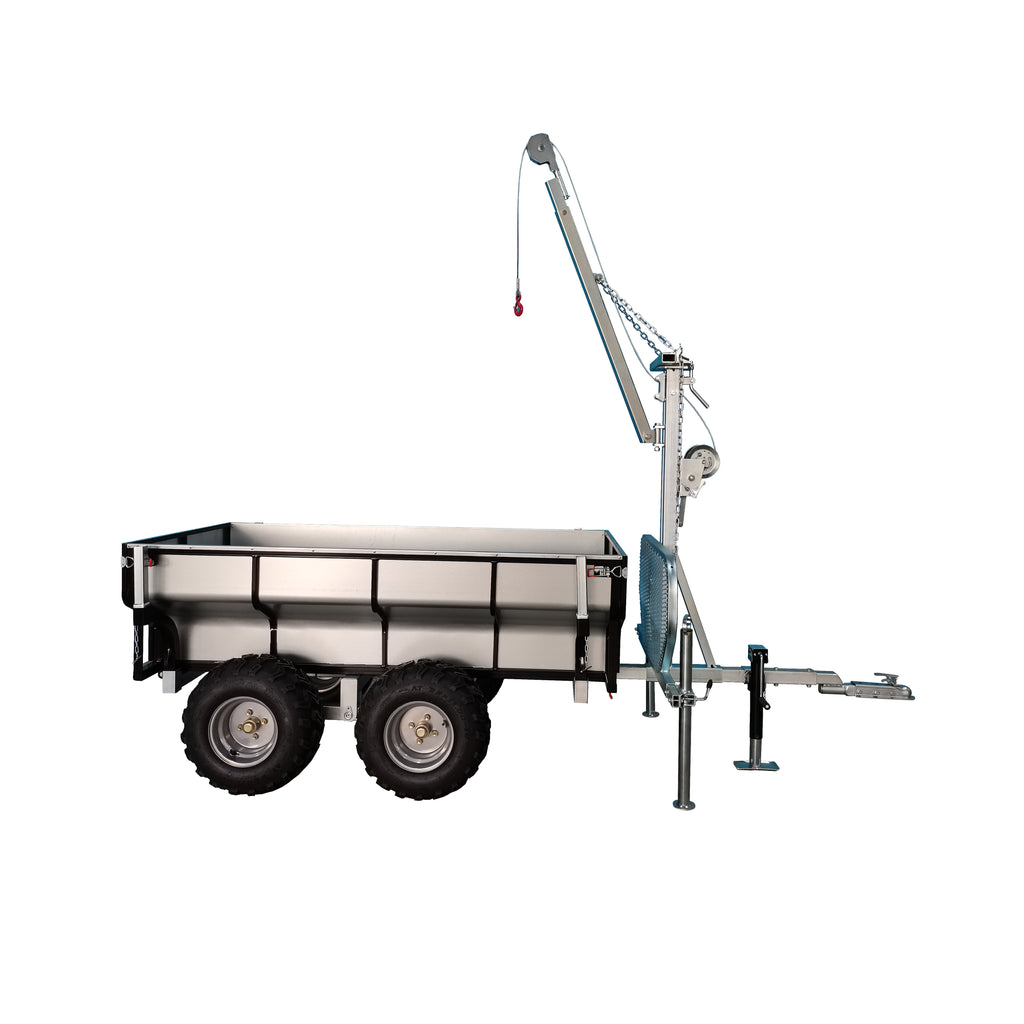

This ATV log & dump trailer is designed for home/farm use. For its simple structure, it is easy to operate and maintain, aslo has a good mobility. Hot-Galvanized Chassis and Galvanized Steel Box make it rustproof, Removable Front/Rear Gates make it is easy to be loaded and unloaded. Crane and manual winch can help loading/unlaoding. The length of the trailer can be adjusted from 2930-3650mm. Best choice for log loading and home use.
Features:
1. Removable Box - Galvanized Steel

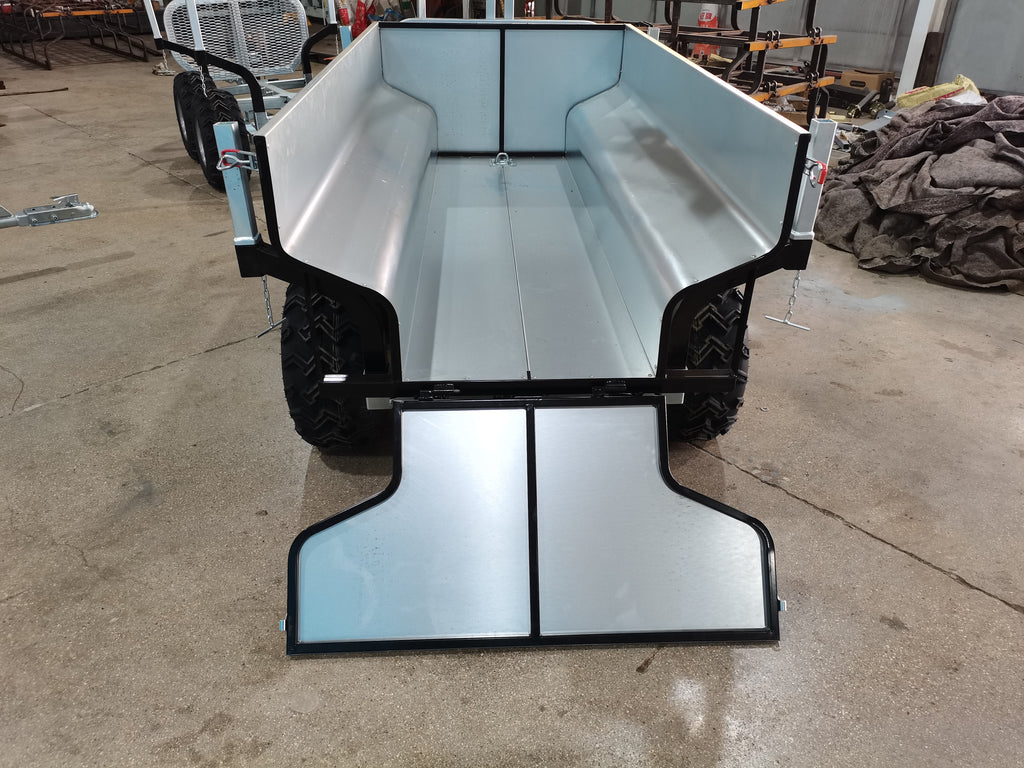

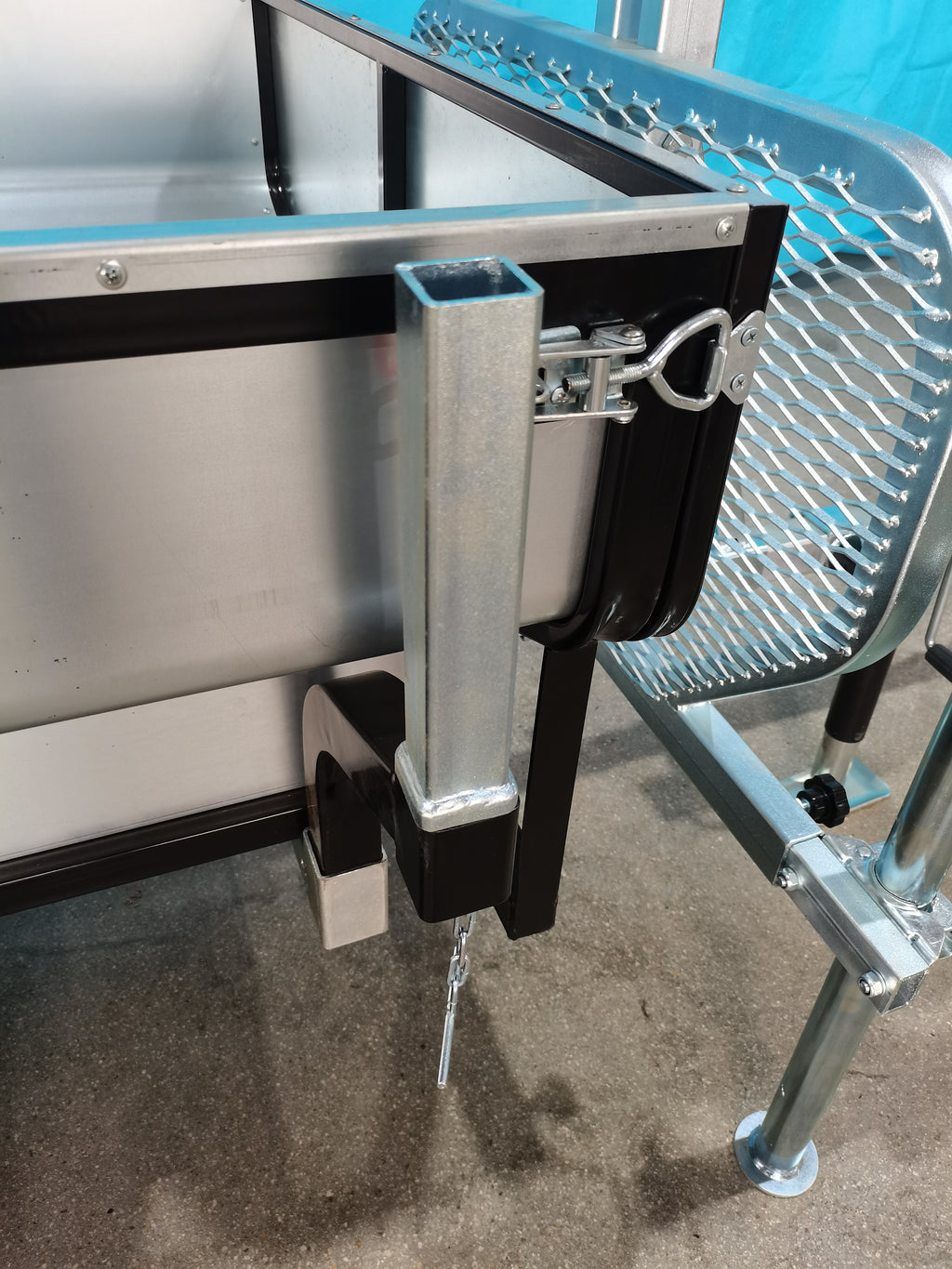

2. Removable Front/Rear Gates
3. Removable Support Posts

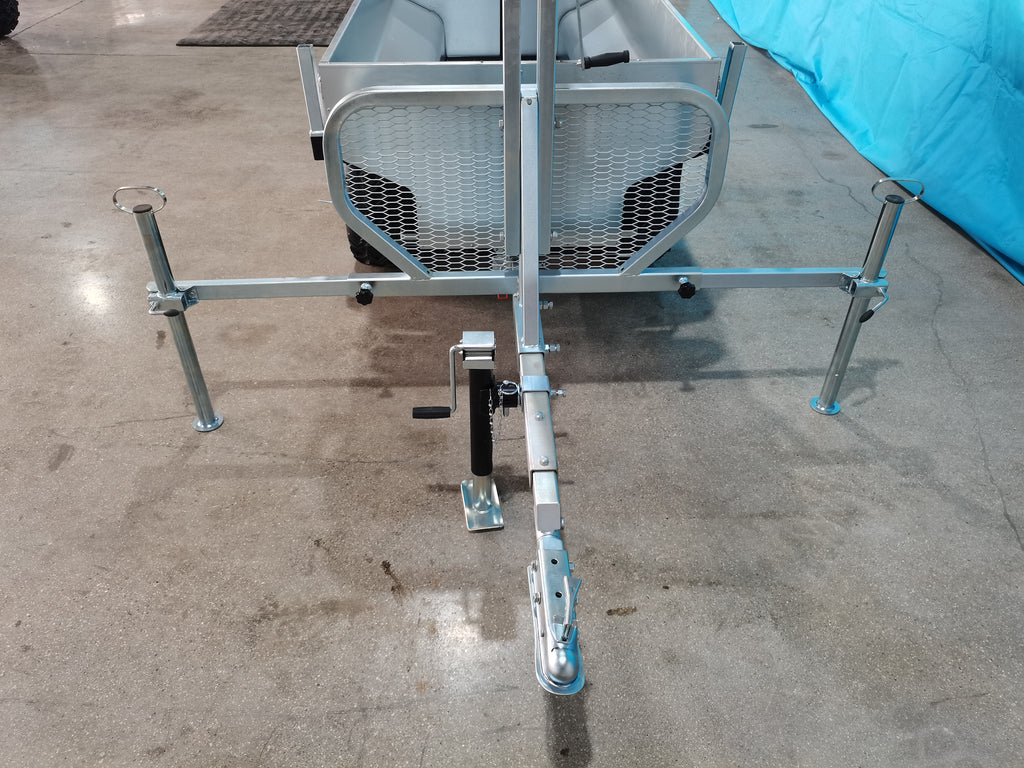

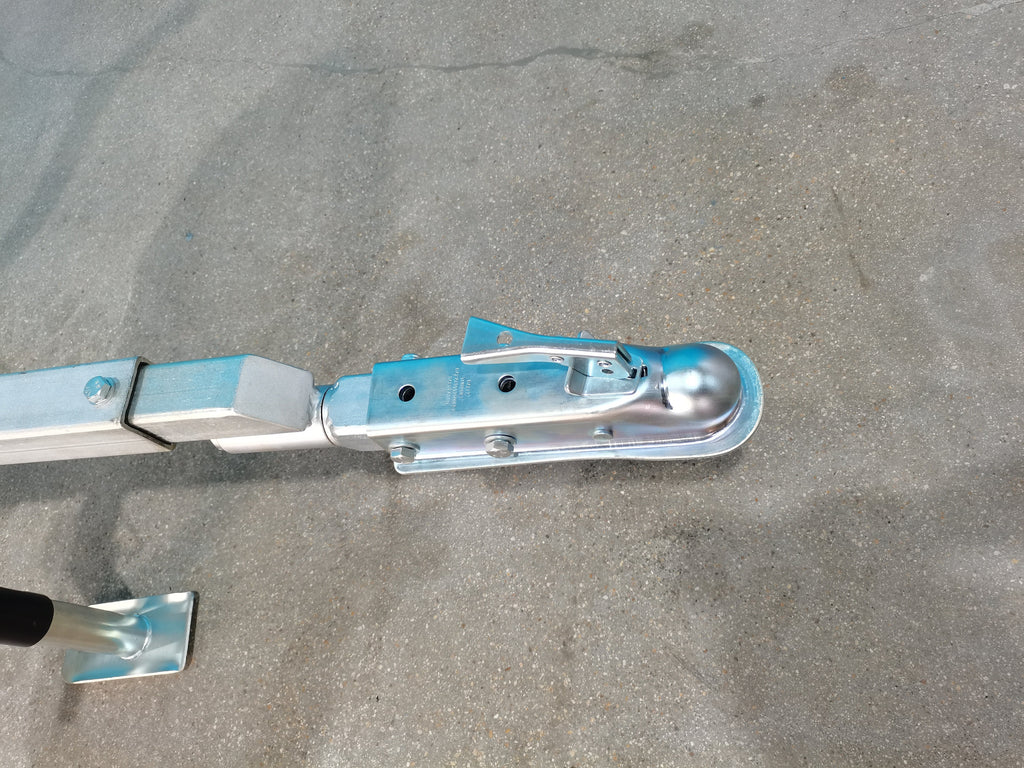

4. 2" Coupler

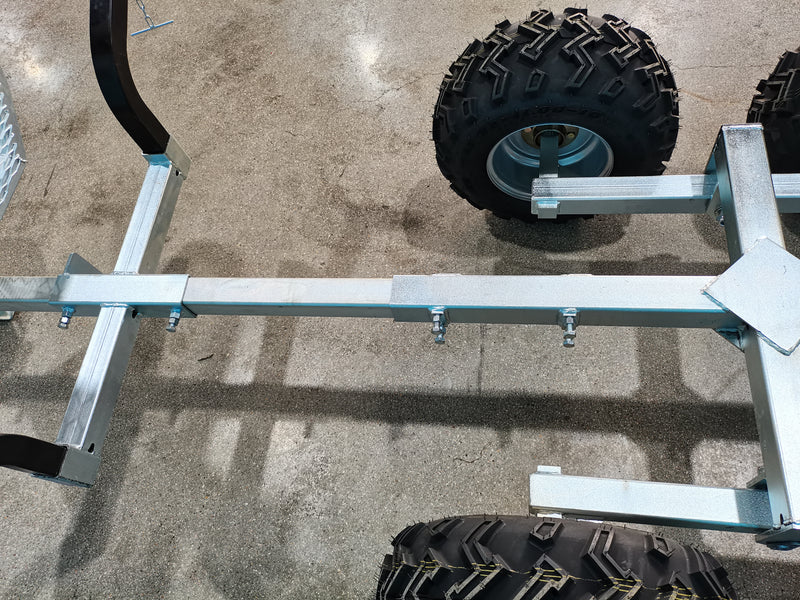

5. Galvanized Chassis

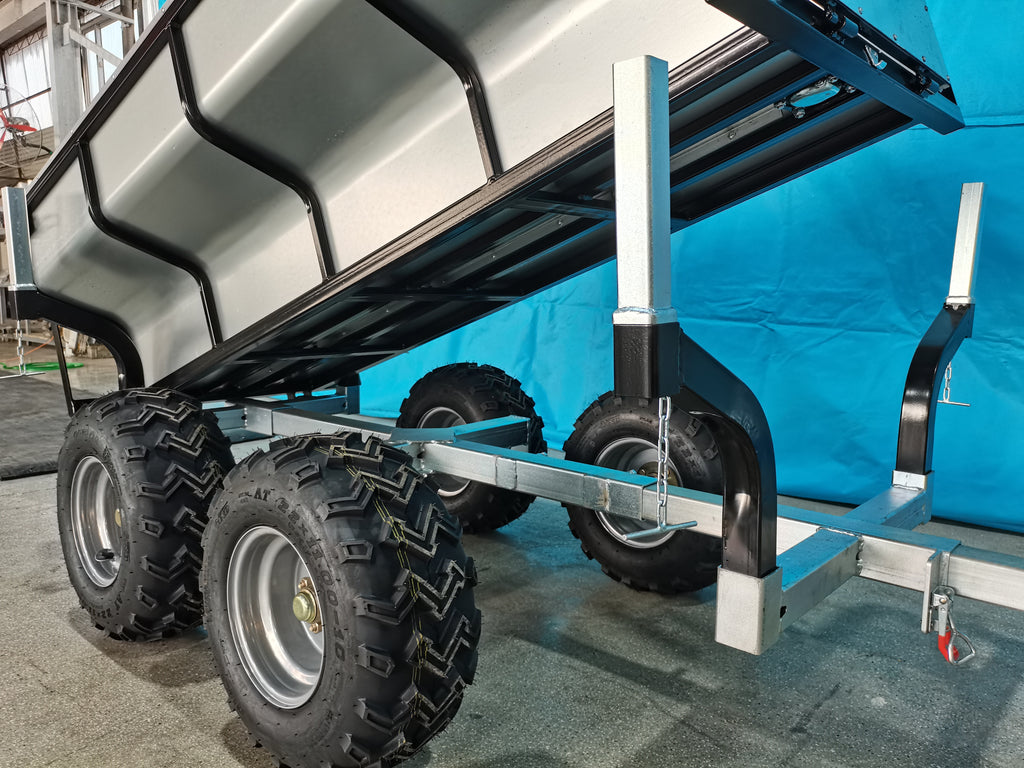

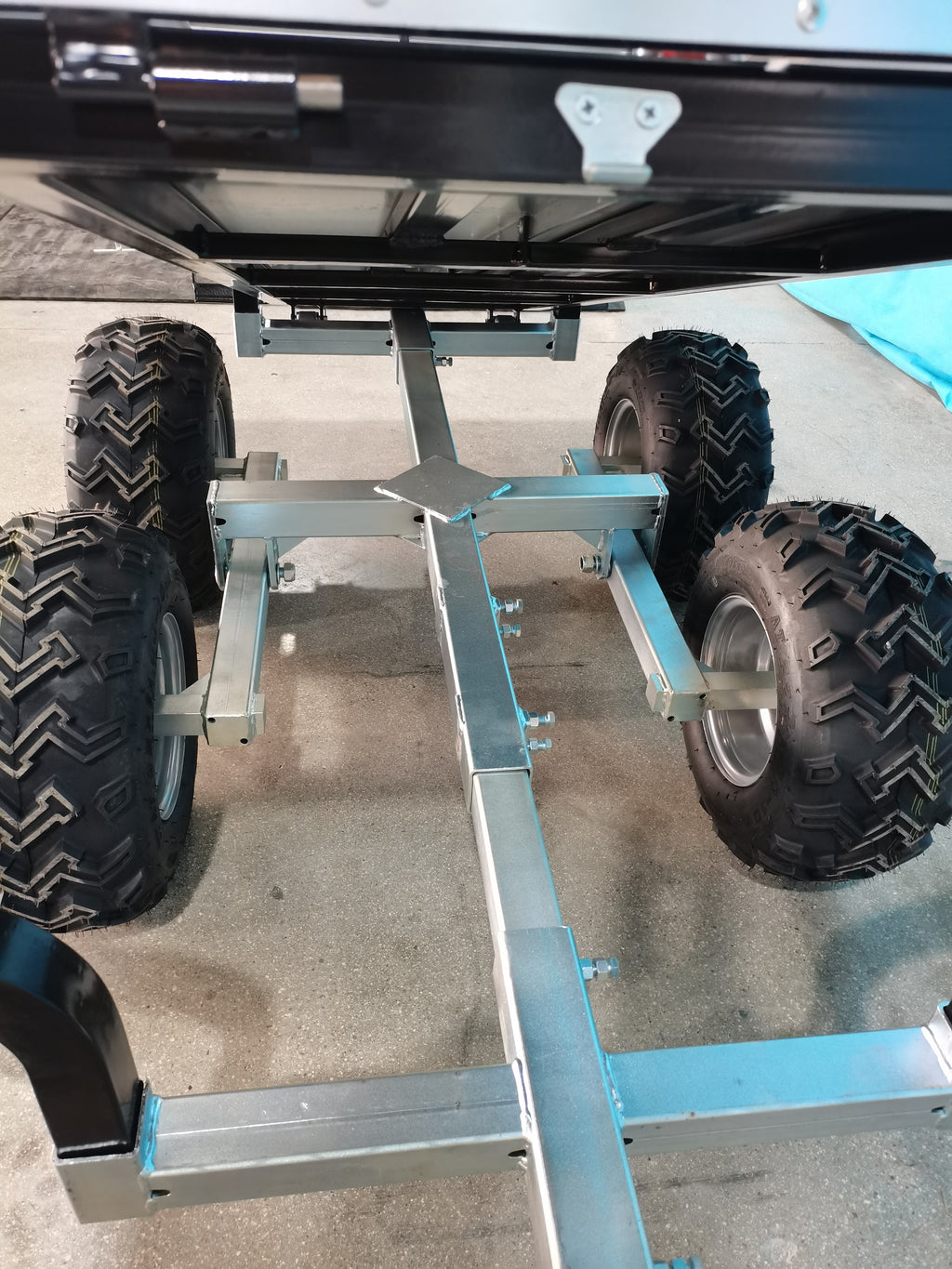

6. Tandem Walking Beam Axles

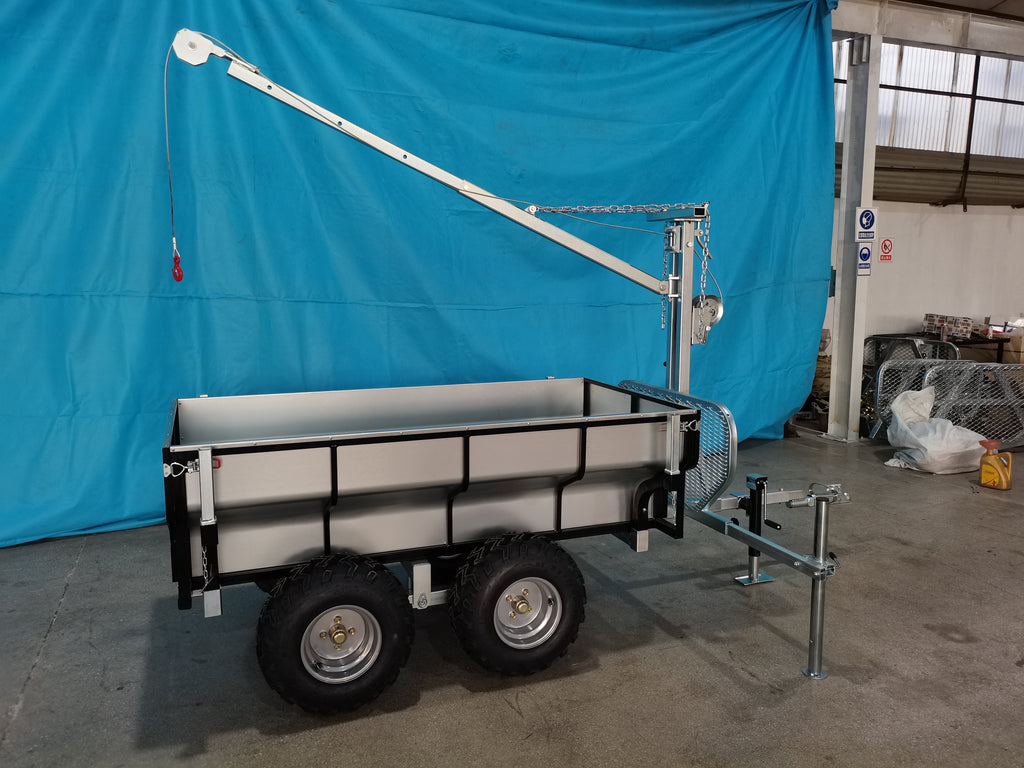

7. Winch/Crane Assembly
Specifications：
| Maximum Haul Capacity | 910kg |
| Maximum Dump Capacity | 295kg |
| Maximum Crane Lift Capacity | 250kg |
| Overall Dimensions | 2930-3650mm(L)×1300mm(W)×1885mm(H) |
| Weight |
330kg |
| Ground Clearance Center of Frame | 360mm |
| Ground Clearance Under Axles | 240mm |
| Box Volume | 0.87m³ |
| Box Weight Inc. Removable Gates | 102kg |
| Box Dimensions (L*W*H) | 2045x1055x535mm |
| Tires | 22'' x 11'' - 10 Offroad ATV Tires |
| Boom Angles & Total Sweep | 50° Left/Right & 100° Total Sweep |
| Cable Size | 5mm x 15m |
