Description
New design semi-industrial Drill Press with Variable Speed DP-VS Series - Bench Type Models
Swing ranging from 10" to 17" (250mm to 430mm)
Features:
- Unlike other common drill presses that use mechanical unit to change working speed, our DP-VS series machines adjust working speed by a unique design VFD/Inverter that controls the input frequency without compromise on output power.
- With the VFD/Inverter, the machine can ensure more precise speed with low energy cost and long service life.
- Front control panel features 12V low voltage start-up, much safer during operation.

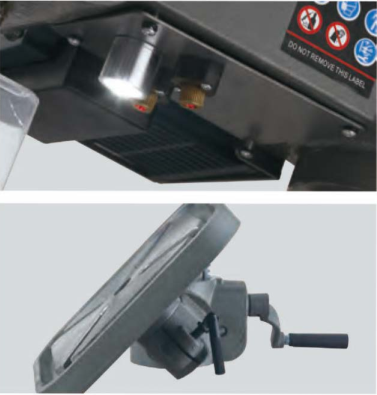

- Digital display on working speed, emergency stop button, LED light, cross laser alignment & auto power-off protection guard.
- Two speed gears multi-wedge pulley with poly V-belt provide wider torque force range and less vibration.
- Solid cast iron body, powder coating multi-processing surface, fine grinding finish on worktable and headstock hole.
- Low noise level, high precision, good rigidity, solid quality, new design novel-looking.
Specifications:
| Model | DP25016B-VS | DP33016B-VS | DP38016B-VS | DP43016B-VS |
| Drill Capacity(mm) | 16 | 16 | 20 | 25 |
| Chuck Capacity(mm) | 16 | 16 | 16 | 16 |
| Swing（mm) | 250 | 330 | 380 | 430 |
| Distance - Spindle to Column(mm) | 125 | 165 | 190 | 215 |
| Spindle Taper | MT2 | MT2 | MT2 | MT2 |
| Speed RPM (50Hz) | 2(0-700,0-3000) | 2(0-700,0-3000) | 2(0-700,0-3000) | 2(0-700,0-3000) |
| Spindle Travel | 60 | 80 | 80 | 80 |
| Column Diameter(mm) | 59.5 | 73 | 73 | 80 |
| Rack & Pinion | yes | yes | yes | yes |
| Poly V-belt | yes | yes | yes | yes |
| CE Chuck Guard | yes | yes | yes | yes |
| Max Distance - Spindle to Table | 390 | 470 | 470 | 440 |
| Max Distance - Spindle to Base | 530 | 670 | 670 | 640 |
| Base Size | 355*210 | 520*310 | 520*310 | 545*330 |
| Base Material | cast-iron | cast-iron | cast-iron | cast-iron |
| Table Size(mm) | 197*197 | 270*270 | 270*270 | 325*325 |
| Table Tilt | yes -45/45° | yes -45/45° | yes -45/45° | yes -45/45° |
| Table Material | cast-iron | cast-iron | cast-iron | cast-iron |
| LED Light | yes | yes | yes | yes |
| Laser Light | yes | yes | yes | yes |
| Inverter (vector control) | yes | yes | yes | yes |
| Motor(w)/S1 | 400 | 600 | 600 | 1100 |
| Height(mm) | 850 | 1050 | 1050 | 1060 |
| NW/GW(kg) | 35/38 | 60/63 | 65/68 | 81/84 |
| Packing Size(mm) | 690*430*260 | 895*490*290 | 895*490*290 | 970*540*330 |
| Loading Qty 20' Container | 400 | 224 | 224 | 154 |
