Description

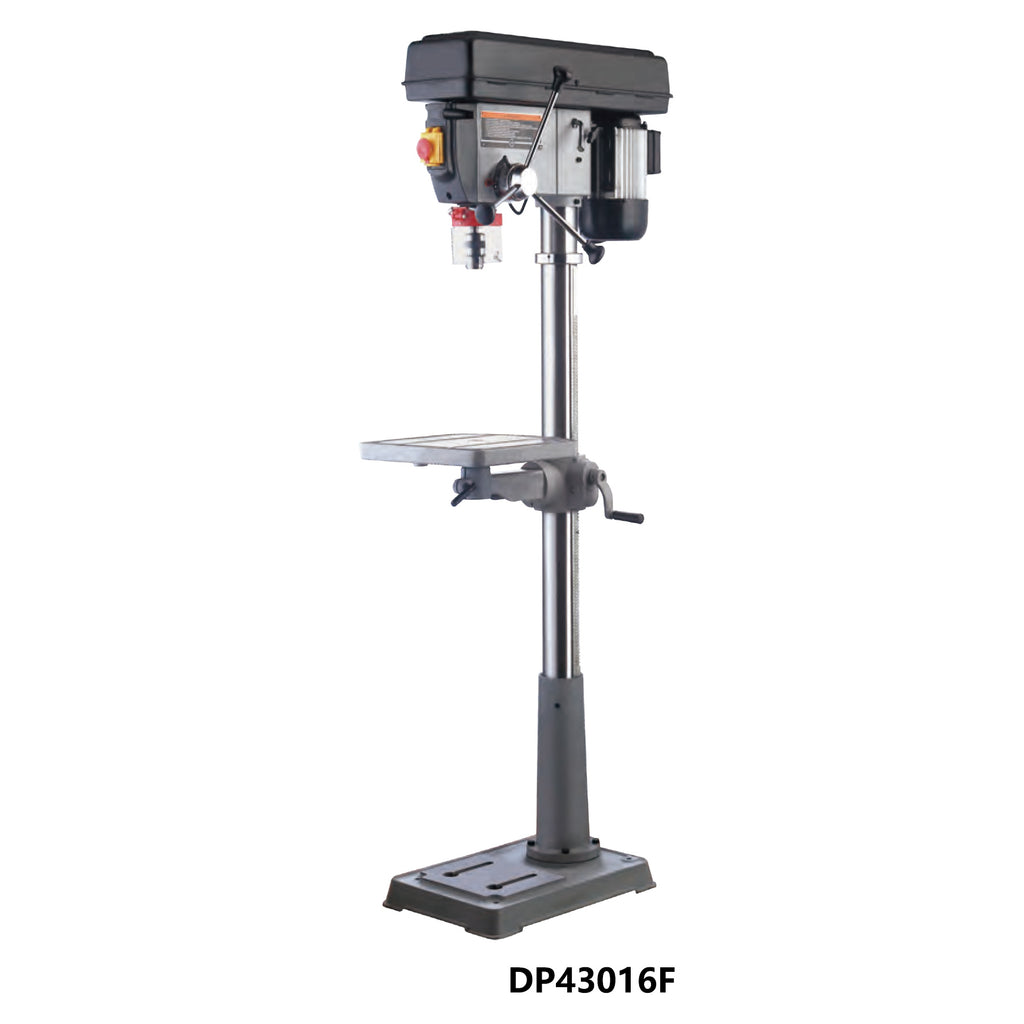

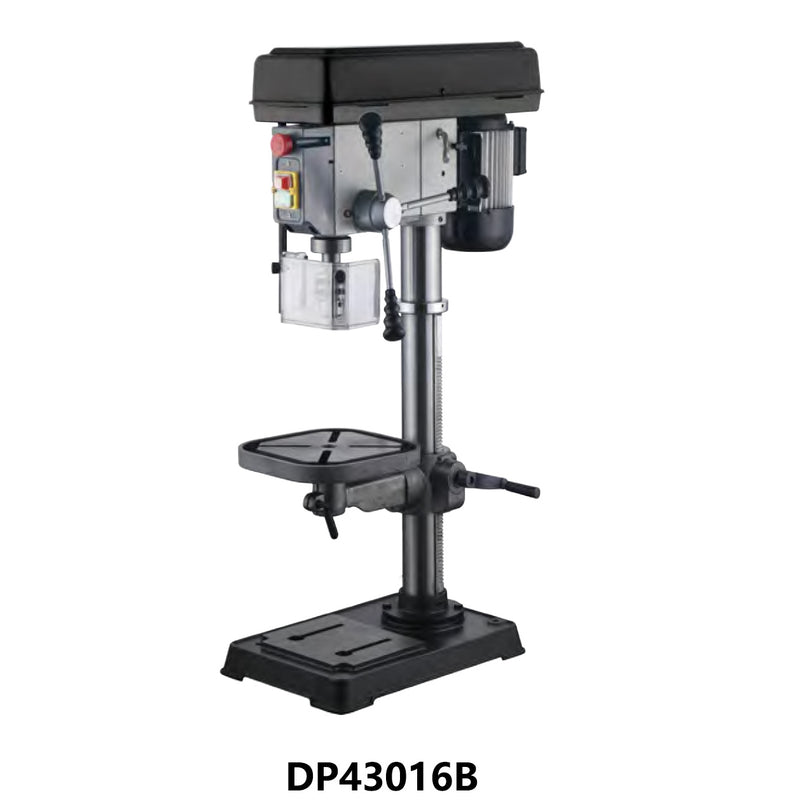

| Model | DP43016F | DP43016B |
| Drill Capacity | 25mm | 25mm |

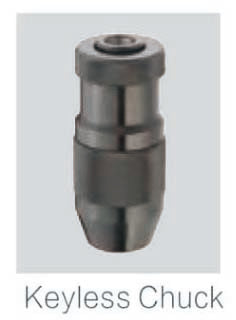

| Chuck Capacity | 16/20mm | 16/20mm |
| Swing | 17"(430mm) | 17"(430mm) |
| Spindle Taper | MT2/MT3 | MT2/MT3 |
| Speed Range at 50Hz | 16(160-3000rpm) | 16(160-3000rpm) |
| Speed Range at 60Hz | 16(200-3630rpm) | 16(200-3630rpm) |
| Spindle Travel | 80mm | 80mm |
| Column Diameter | 80mm |
80mm |
| Rack & Pinion | YES | YES |
| Base Size | 505 x 345mm | 505 x 345mm |

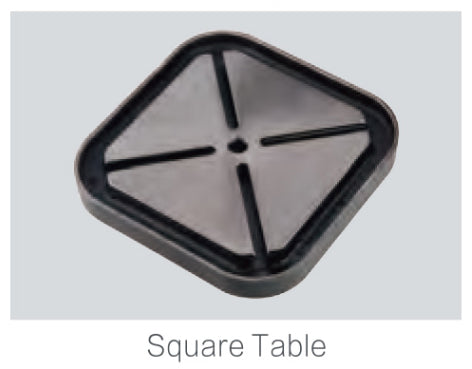

| Table Size | 356 x 356mm | 356 x 356mm |
| Overall Height | 1635mm | 1635mm |
| Motor | 1100W | 1100W |
| Weight | 81/86kg | 81/86kg |
| Packing Size | 1410x540x250mm | 970x540x330mm |
| Quantity for 20GP | 144cs | 168pcs |
