Description

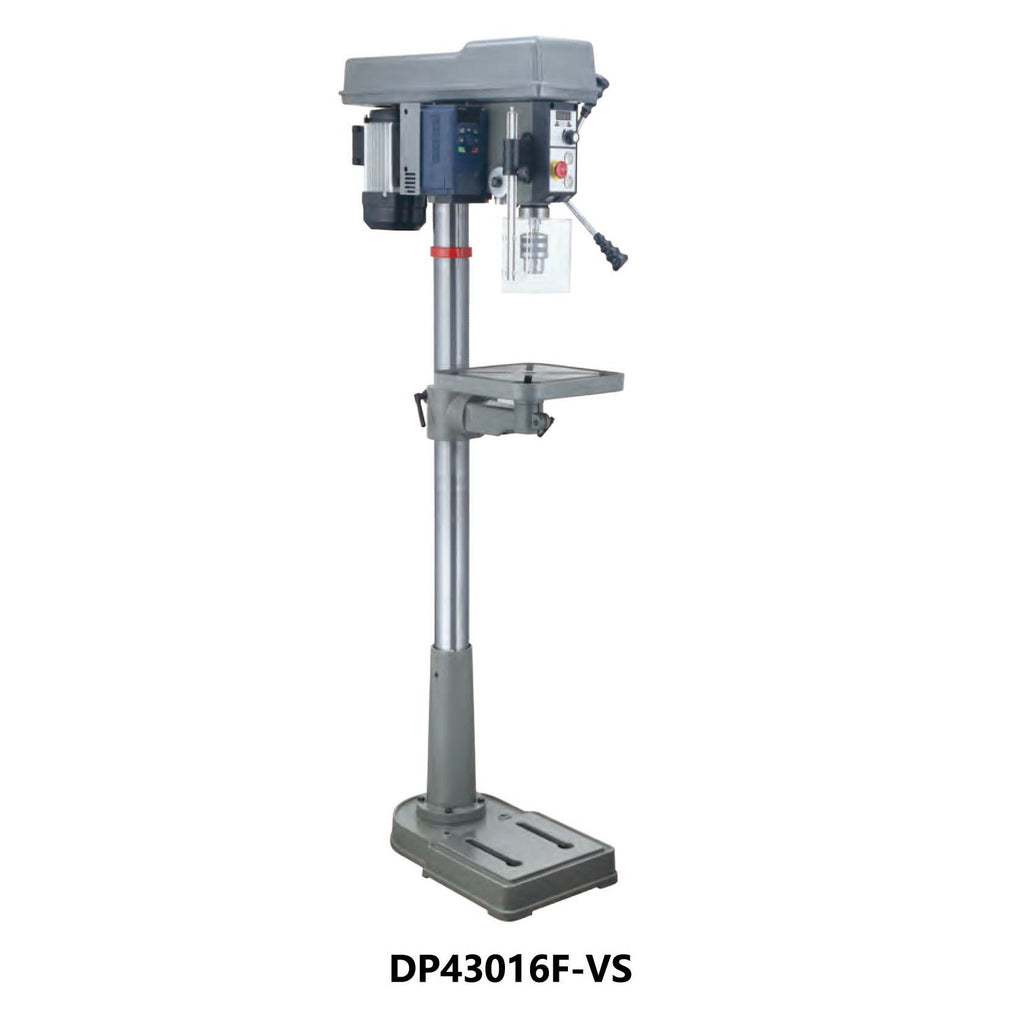

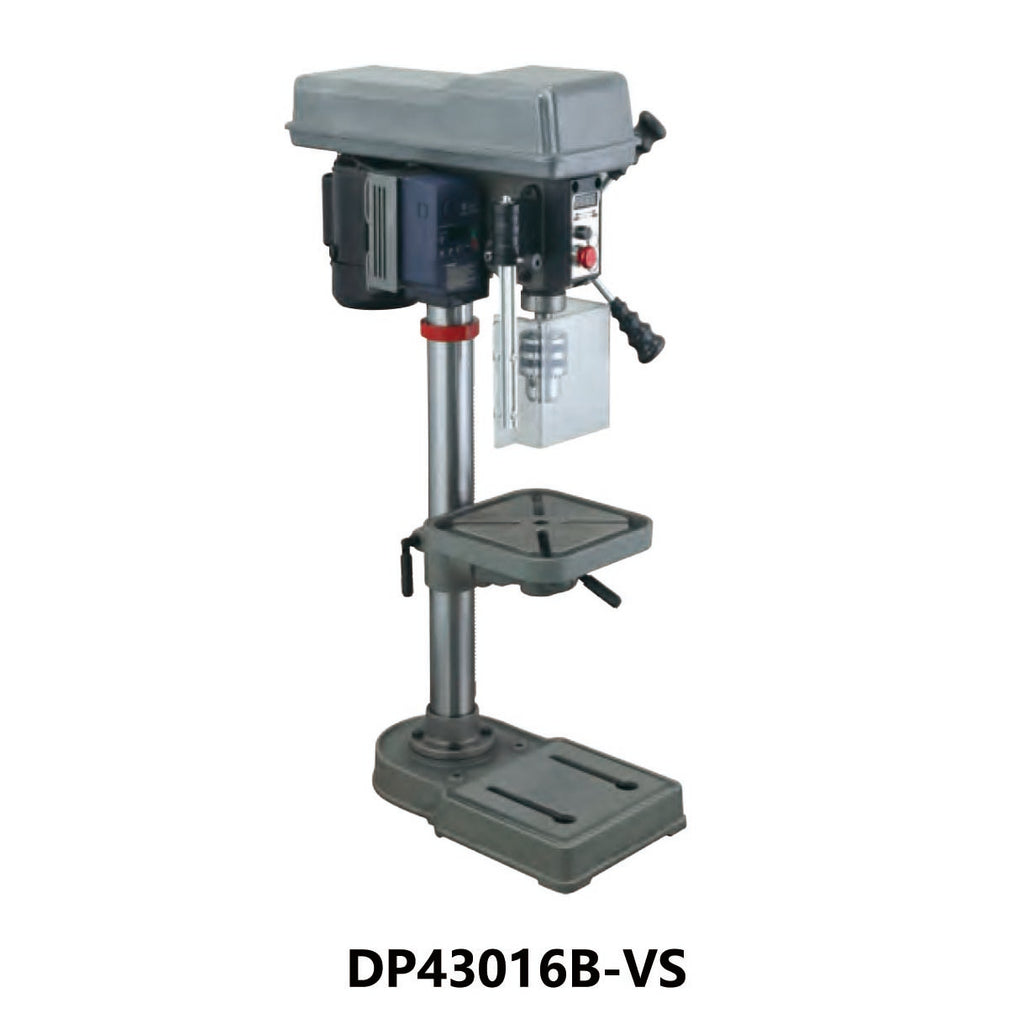

| Model | DP43016B-VS | DP43016F-VS |
| Drill Capacity | 25mm | 25mm |

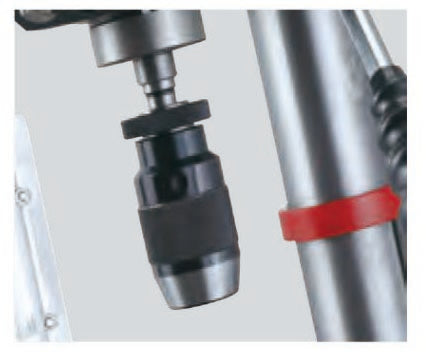

| Chuck Capacity | 16mm | 16mm |
| Swing | 430mm | 430mm |
| Distance from spindle to column | 215mm | 215mm |
| Spindle Taper | MT2 | MT2 |
| Speed Range at 50Hz | 2(0-700/0-3000rpm) | 2(0-700/0-3000rpm) |
| Spindle Travel | 80mm | 80mm |
| Column Diameter | 80mm |
80mm |
| Max. Distance from spindle to table | 440mm | 685mm |
| Max. Distance from spindle to base | 640mm | 1175mm |
| Base Size | 545 x 330mm | 545 x 330mm |

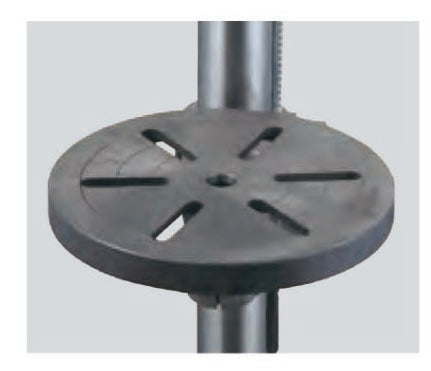

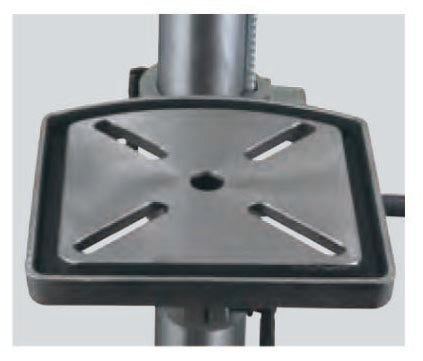

| Table Size | 315 x 315mm | 315 x 315mm |
| Table Tilt | -45°/45° | -45°/45° |

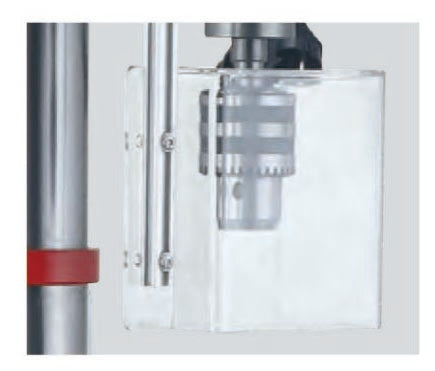

| CE Chuck Guard | YES | YES |
| LED Light | YES | YES |
| Laser Light | YES | YES |
| Converter(vector control) | YES | YES |
| Overall Height | 1065m | 1630mm |
| Motor/S1 | 1100W | 1100W |
| Weight | 81/84kg | 91/96kg |
| Packing Size | 895x490x345mm | 1430x510x310mm |
| Quantity for 20GP | 168pcs | 112pcs |
