Woodworking Panel Saw Sliding Table Saw

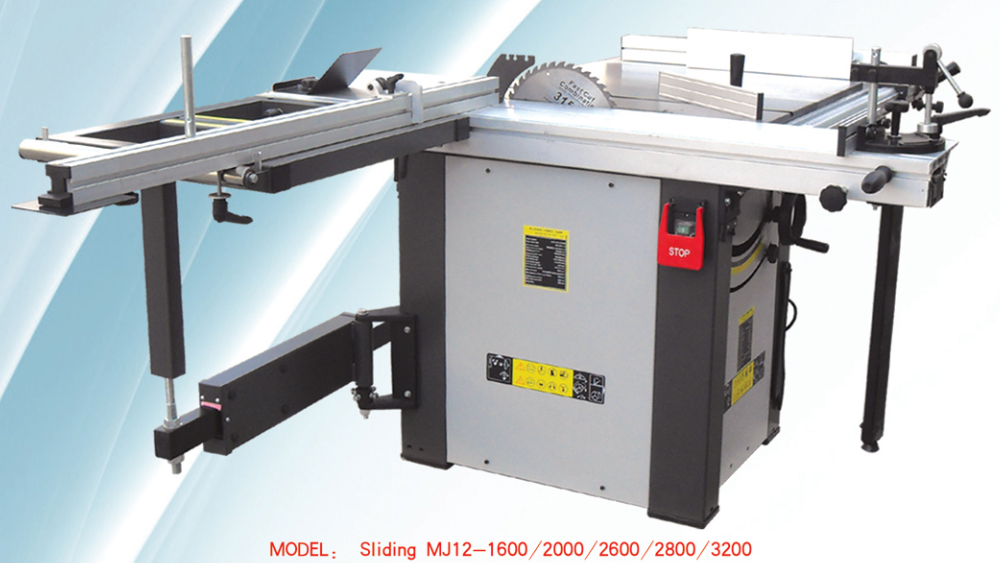

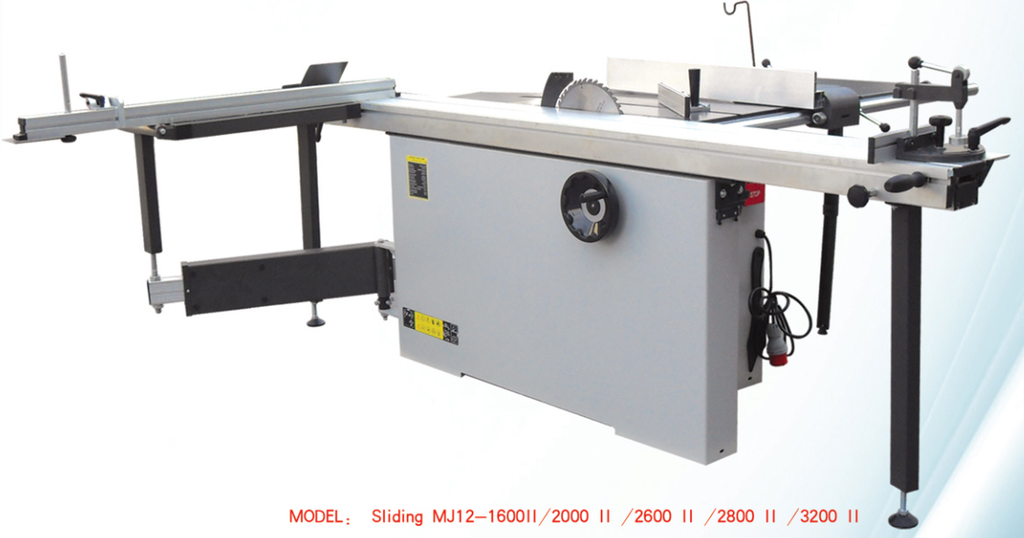

Woodworking Panel Saw Sliding Table Saw Model I & II

 We supply 2 models of this wood panel saw. Main difference is the motor and blade speed. Please check detailed specifications below:

Power                             3000W（3800W Model II）
Main Table Size (mm)    385x800mm
Extension Table (Cast Iron)    440x800mm
Extension Table (Steel Plate)    440x800mm
Rear Extension Table     310x500mm
Sliding Panel Size          1600x270mm
Extension Sliding Panel Size   680x580mm
Cross Cut Fence            1200-2000mm
Main Blade Size             315x30x3mm
Main Blade Speed         4000rpm (4500rpm Model II)
Scoring Blade Size         90x20x3mm(2-100X20mm)
Scoring Blade Speed      5800rpm (8500rpm Model II)
Max. Cut Depth             100mm at 90°(315mm blade)
                                       80mm at 45°(315mm blade)
Max. Distance-Blade to Rip Fence      1220mm
